🎓 Bonus Exercise – Advanced Techniques for Smarter RAGs

🪄 This is a free-form, bonus exercise. There's no "correct" outcome — only deeper exploration.

You've already built a powerful testing assistant. Now it's time to experiment with advanced Retrieval-Augmented Generation (RAG) strategies and Dify-specific features that make your assistant more intelligent, focused, and useful for testers.

Release baseline: This bonus exercise targets Dify 1.16.1 while preserving the 1.9.1 Parameter Extractor, Question Classifier, Iteration, If/Else, retrieval, and prompt-template scope.

Workflow compatibility changed:

• Name the extractor output issue_keys everywhere; a singular/plural mismatch leaves the Iteration input empty.
• Inside Iteration, retrieve with the current item, not the original multi-issue query.
• Add issue_key is {{iteration.item}} to the test-generation retriever so each Gherkin scenario is grounded in the correct issue.
• Dify 1.16.1 may expose Iteration results as a flat object list. The supplied Code nodes accept both flat and legacy nested lists before combining answers.
• Both Iterations remove abnormal outputs so one failed item does not discard every successful issue result.

---

🧠 Why Go Beyond the Basics?

While standard RAG systems retrieve documents and pass them to a language model, real-world software testing questions require:

• Better focus on relevant information
• More structured reasoning for complex queries
• Dynamic adaptation to different types of questions

This is where combining advanced RAG strategies with Dify blocks unlocks the next level.

---

🧪 Part 1 – Advanced RAG Techniques

These are conceptual strategies used in many RAG systems that help with retrieval quality, context relevance, and multi-turn generation.

🪜 1. Parent–Child Retrieval

Why it matters: You often need related items together: a parent epic with child issues, or a test suite with all cases. This improves reasoning and coverage.

How to use it:

• Structure your documents with parent-child metadata (e.g., epic_id, test_suite)
• Filter in Dify's knowledge retriever by metadata field to retrieve children or a whole group

🧹 2. Query Rewriting

Why it matters: Many queries are vague or poorly phrased. Rewriting improves retrieval and LLM generation.

How to use it:

• Use a classifier or prompt node to detect vague queries
• Add system prompts that reformulate the query with more context before retrieval

🔁 3. Iterative or Multi-Query Retrieval

Why it matters: If a query references multiple issues or modules, each subquery deserves its own chunk of context.

How to use it:

• Split queries using a Parameter Extractor
• Loop over values with the Iteration node
• Combine or format answers at the end

🎯 4. Retrieval Filtering and Chunk Design

Why it matters: Filtering based on metadata avoids off-topic results. Chunking well ensures completeness without verbosity.

How to use it:

• During ingestion, assign metadata like component, priority, or type
• Use metadata filters in the Retrieval node
• Experiment with different chunk sizes: smaller for bugs, bigger for concepts

---

⚙️ Part 2 – Powerful Dify Blocks to Boost Your Chatbot

These are not RAG strategies per se, but Dify capabilities that improve your assistant's intelligence and control.

📚 1. Parameter Extractor

Extracts structured data (like issue keys, module names, or dates) from user queries. Ideal for filtering or branching logic.

🧠 2. Question Classifier

Classifies user intent (e.g., test generation vs. documentation lookup). Each category can follow a different chatflow.

Try categories like:

• specific_issue
• list_issues
• general_project
• test_related
• test_generation
• unrelated

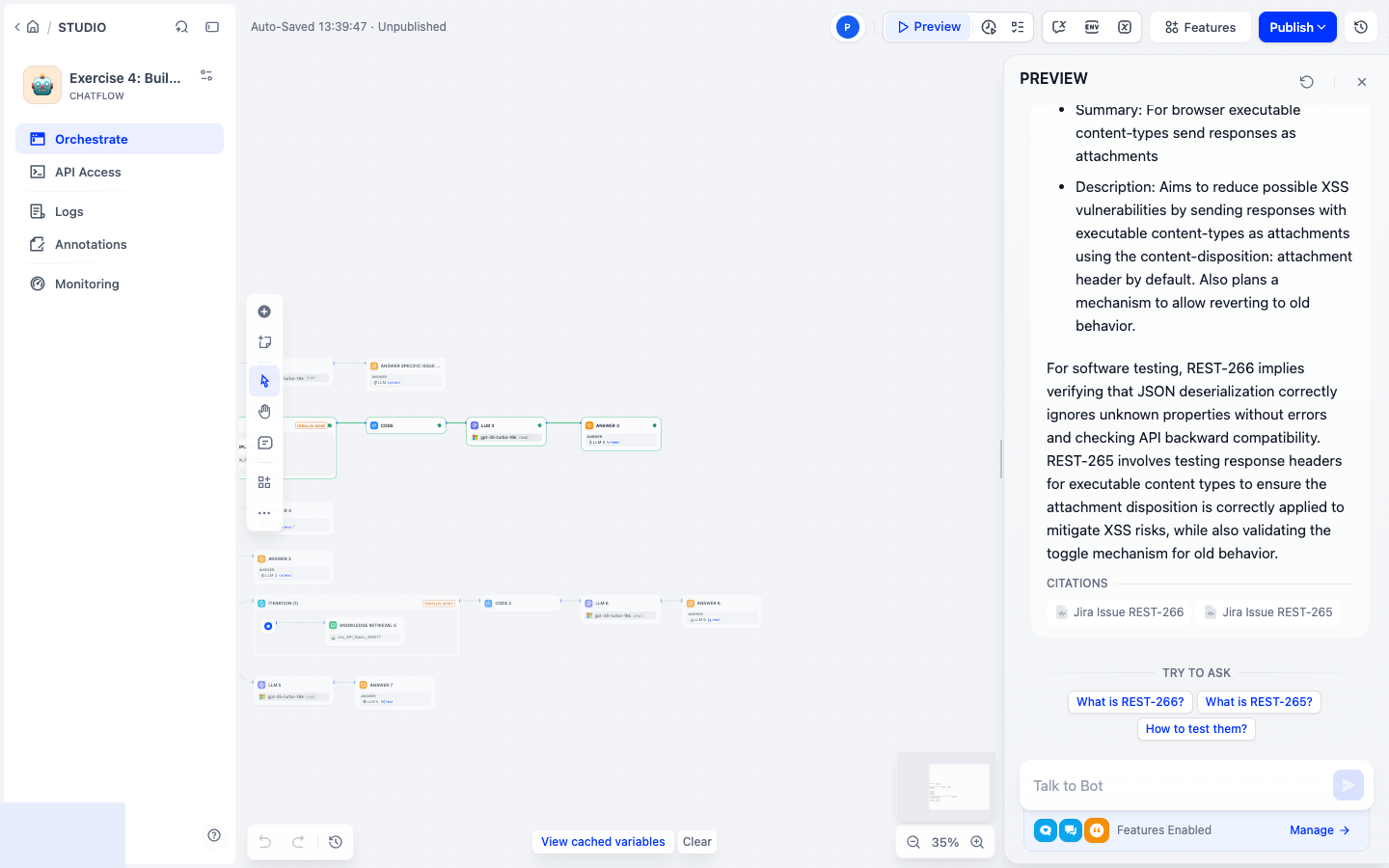

🔁 3. Iteration changed

Use it to generate a loop over multiple issues. Great for:

• "Generate test cases for REST-201, REST-202, REST-203"
• "Summarize these five bugs"

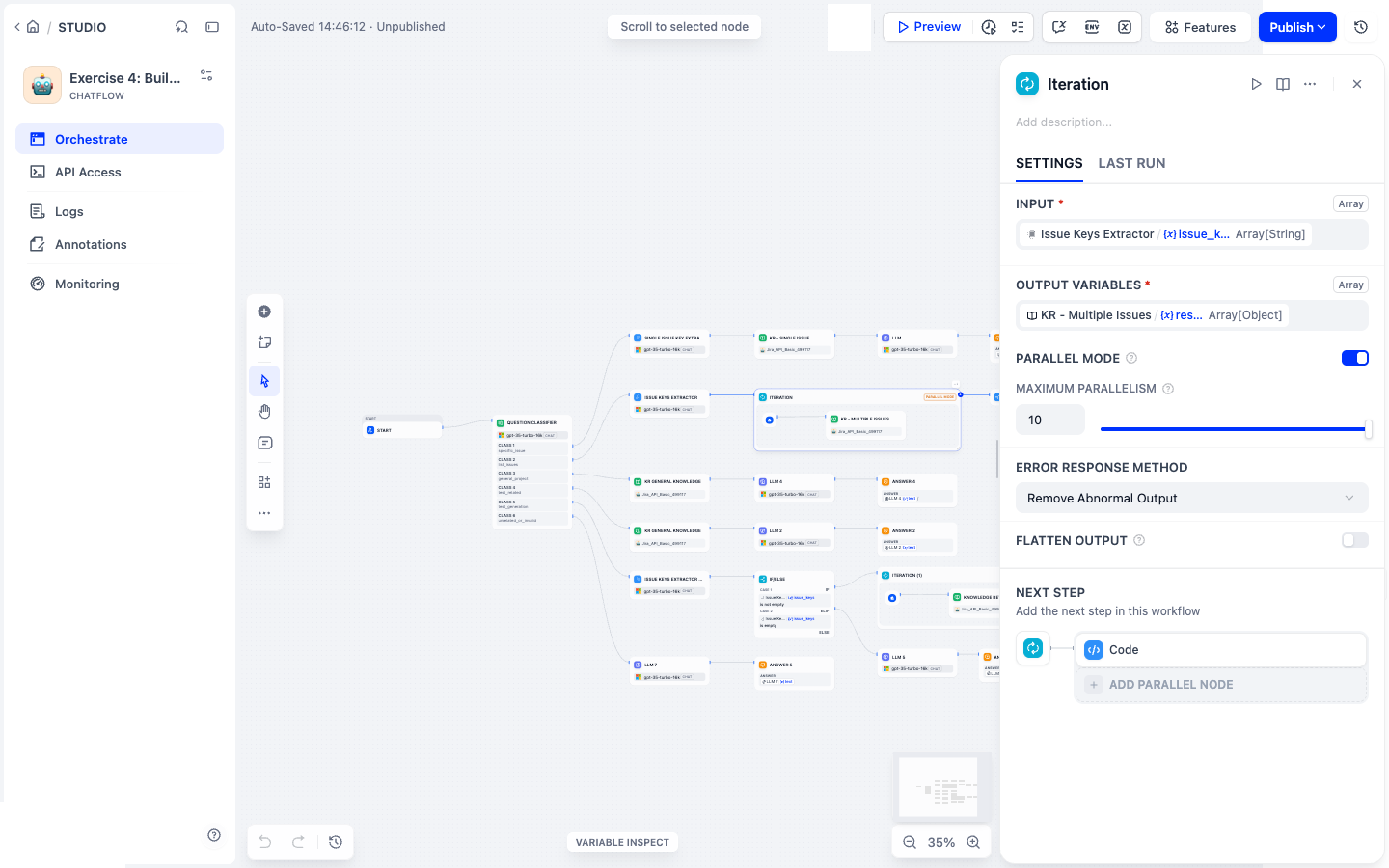

For both Iteration nodes, set the error response method to Remove Abnormal Output. Each loop currently returns one object, so the Iteration already emits a flat object list and Flatten Output stays off. Enable it only if you change the loop to return an array per issue. The final output can contain fewer items than the input array, so downstream Code nodes must omit failed items and produce a clear response when no valid item remains.

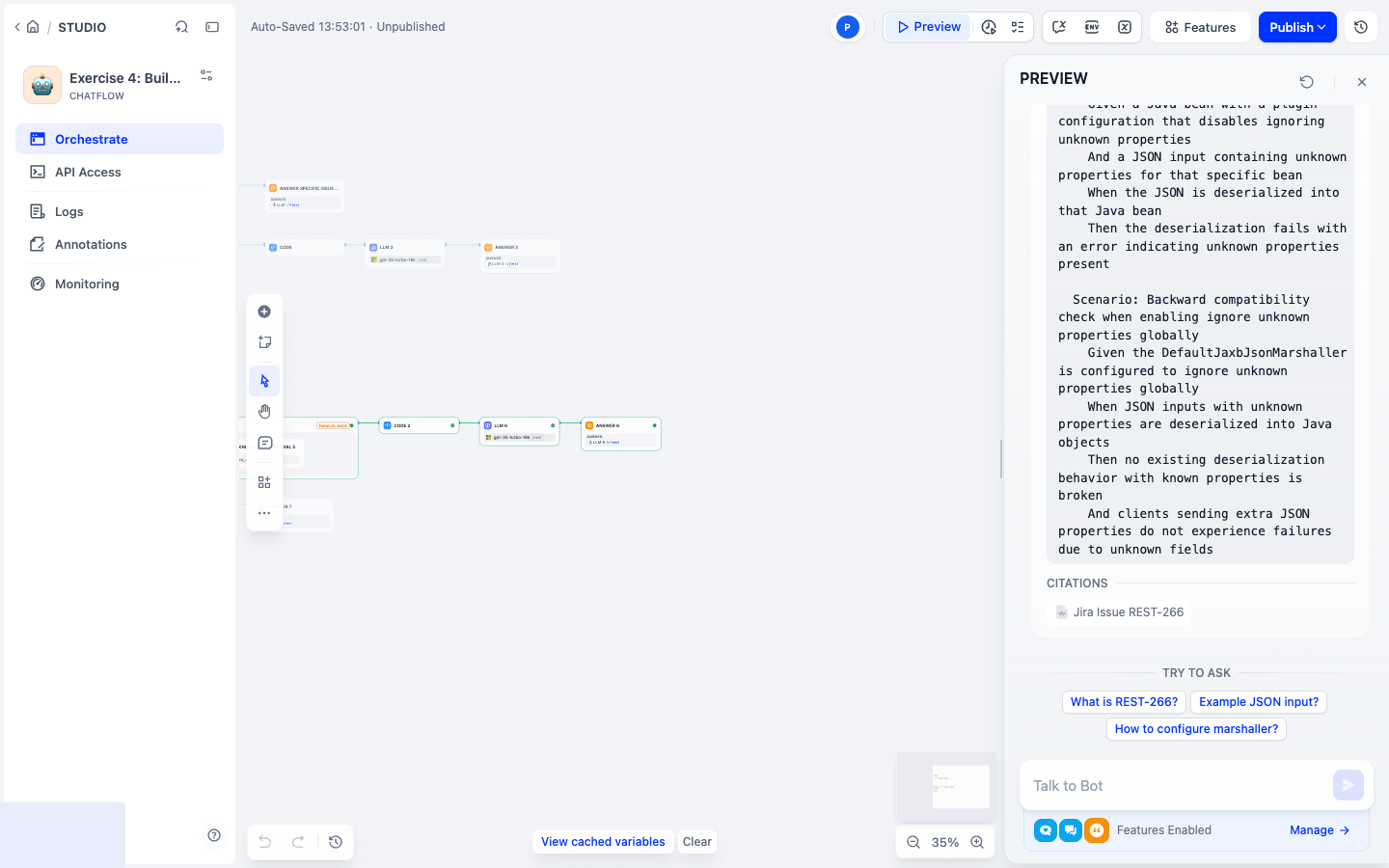

⚖️ 4. If/Else Routing

Adds logic to your flow:

• If issue_key exists → go to filtered retrieval
• If query is unrelated → reply with a fallback message

🧰 5. Prompt Templates

Use specialized prompts depending on user intent. For example:

• System prompt for test generation (You are a Gherkin generator...)
• System prompt for architecture questions (You are a system design assistant...)

---

🧪 Bonus Challenges changed

Let's revisit our question classifier. It identifies 6 types of queries. Try customizing each path using the above techniques:

The supplied 1.16.1 workflow was executed through the four acceptance paths below. Use these results to compare your own routing, retrieval, and answer grounding.

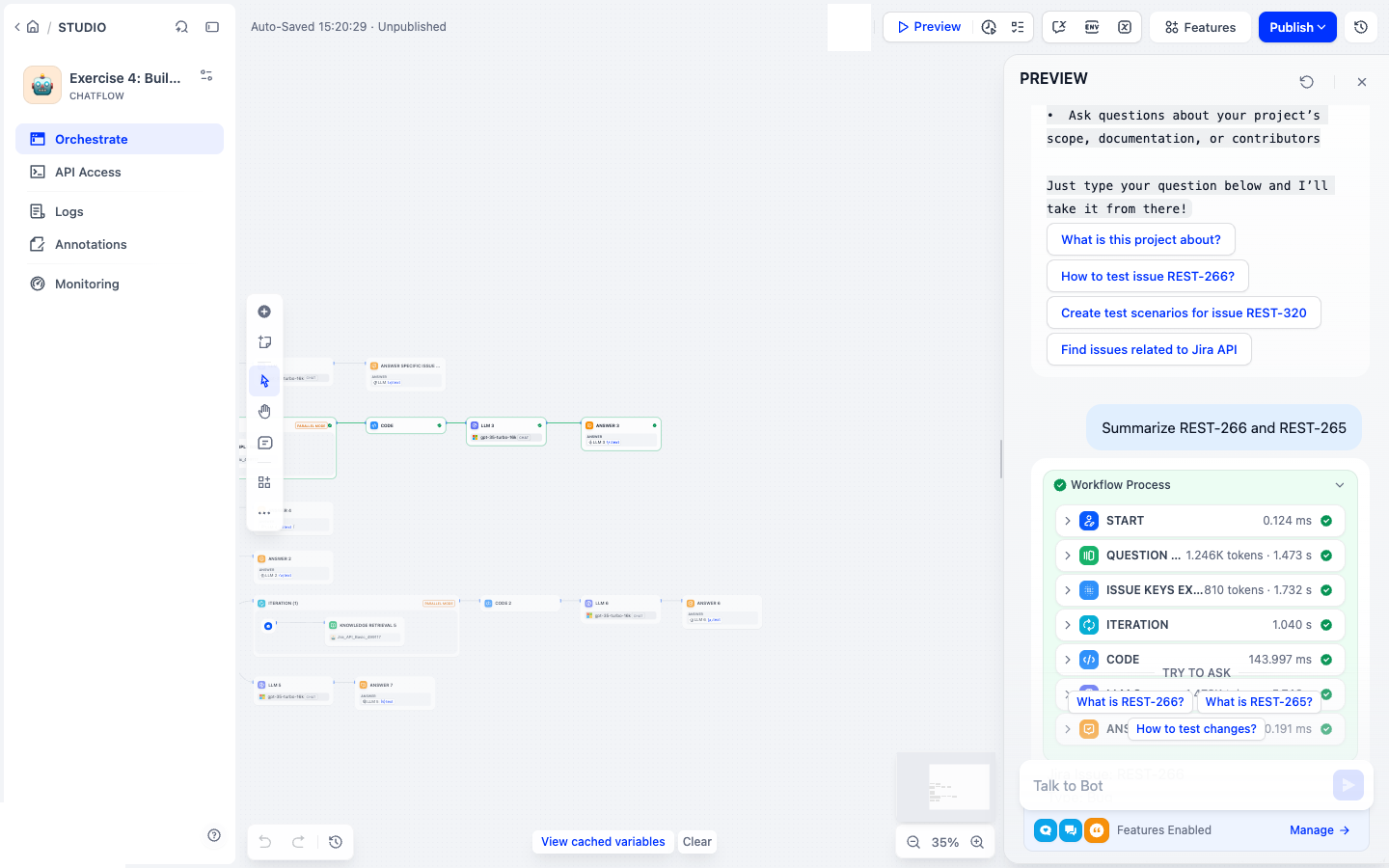

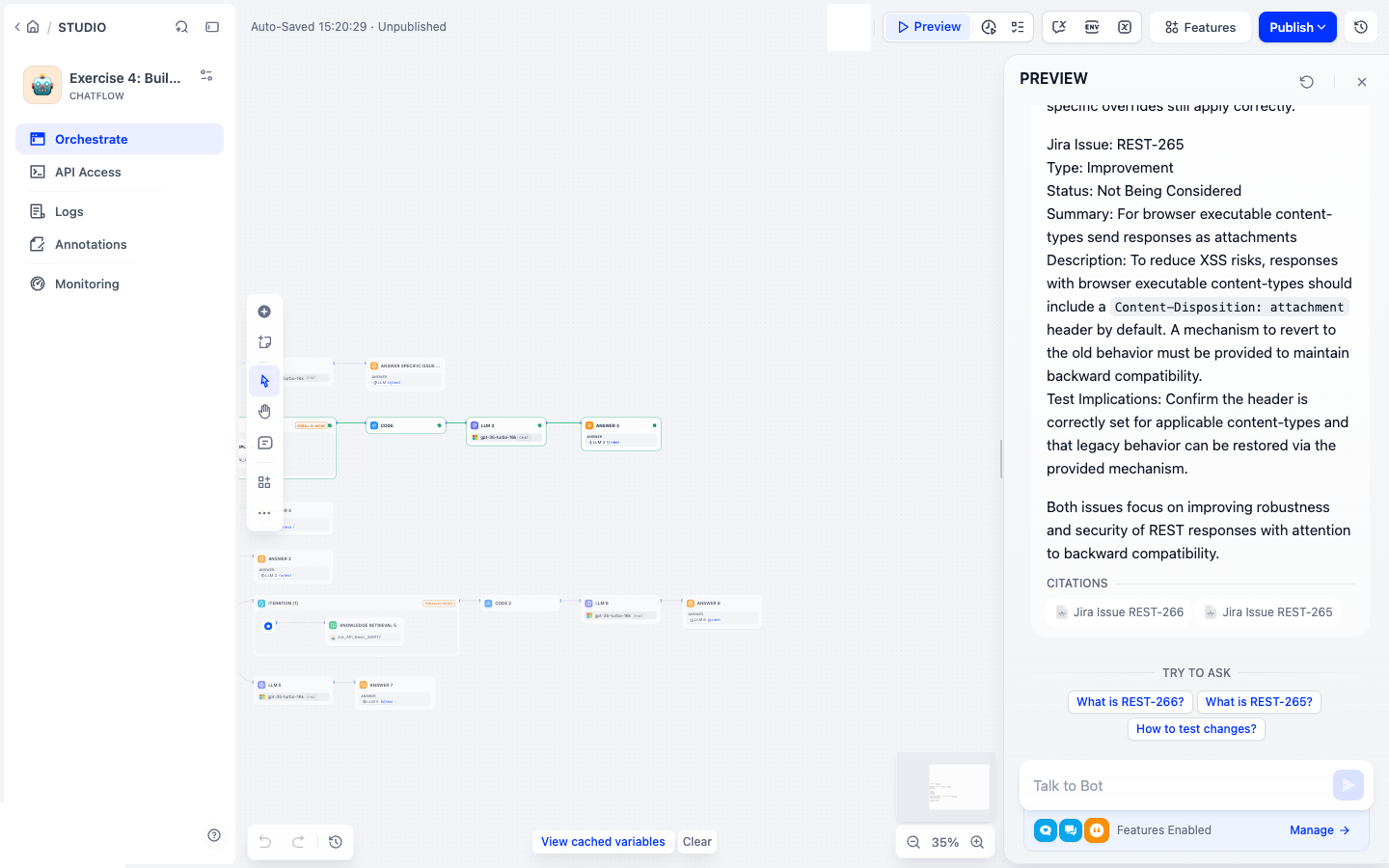

The two-item run should retain one independently grounded result per issue and citations for both sources. Because abnormal outputs are removed, also make the final combiner state when fewer issues completed than were requested; never silently claim full batch success.

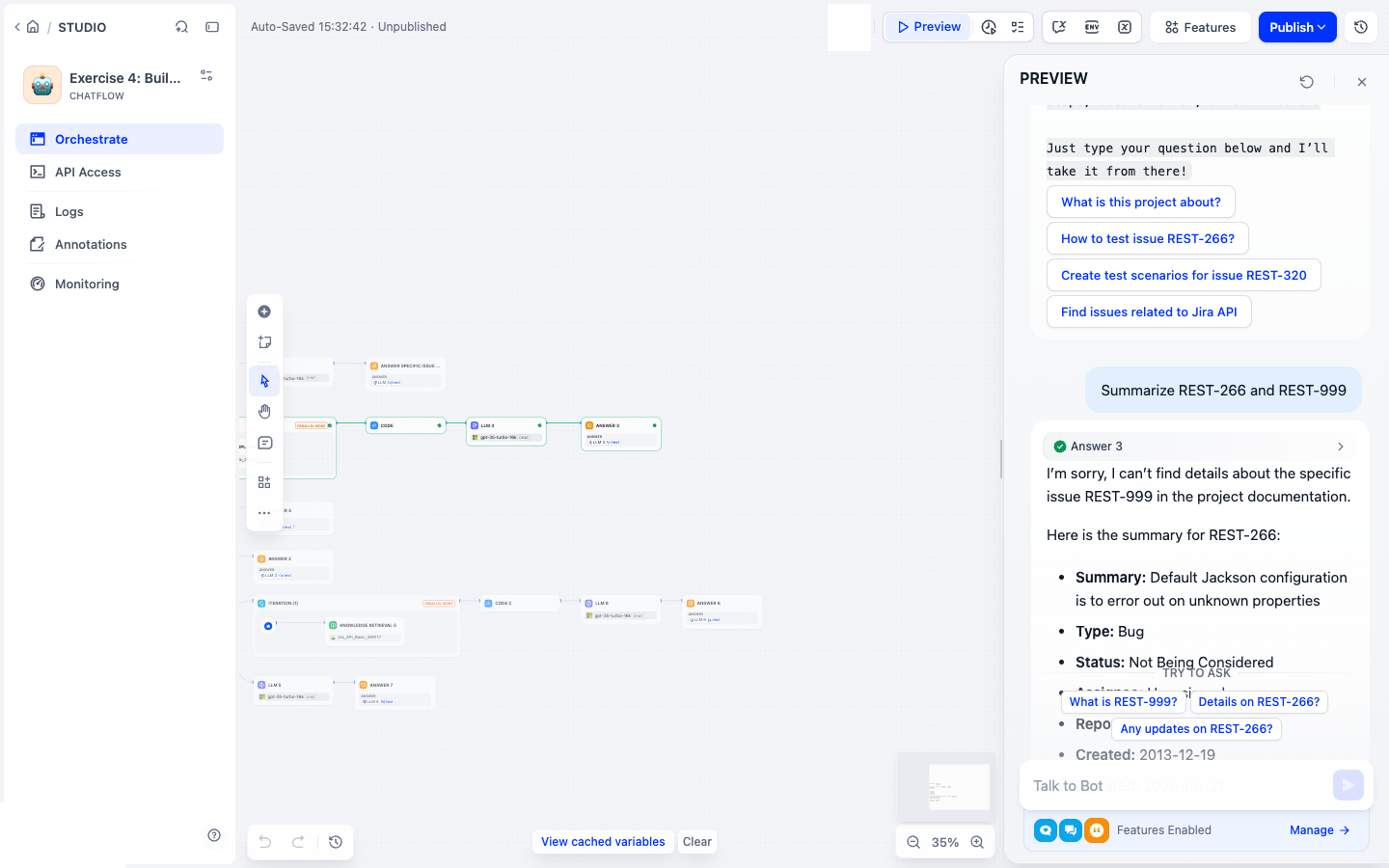

Try Summarize REST-266 and REST-999. The supplied combiner compares the extracted keys with the retrieved context, reports that REST-999 was not found, and still returns the grounded REST-266 result.

Category	Try This...

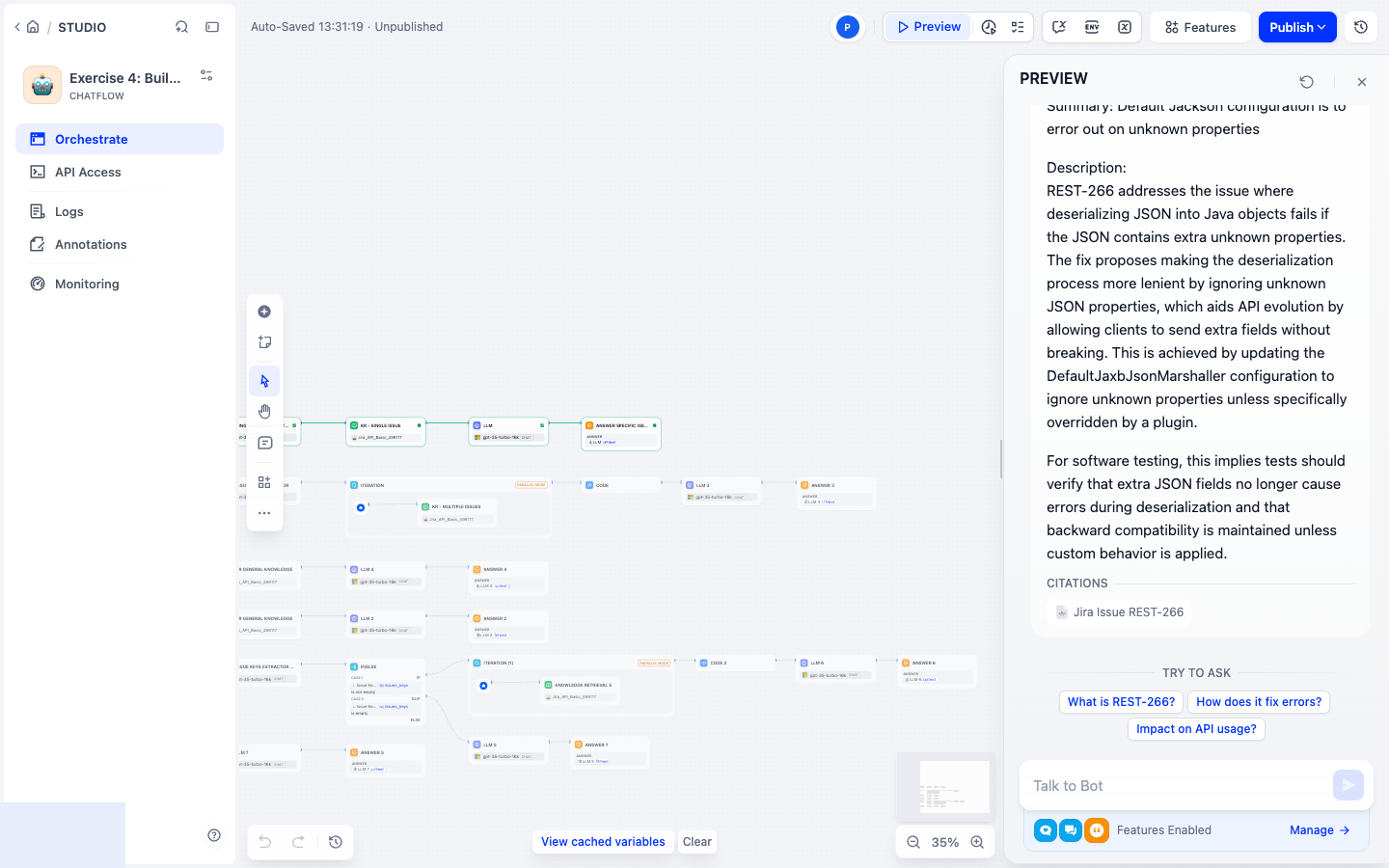

specific_issue	Parameter extractor → filtered retriever by issue_key
list_issues	Parameter extractor → iteration over each → summarize or generate
general_project	Dedicated retriever + LLM focused on project scope
test_related	Retrieval filtering by type = test_strategy or tuned prompt
test_generation	Custom prompt + single or iterative test generation

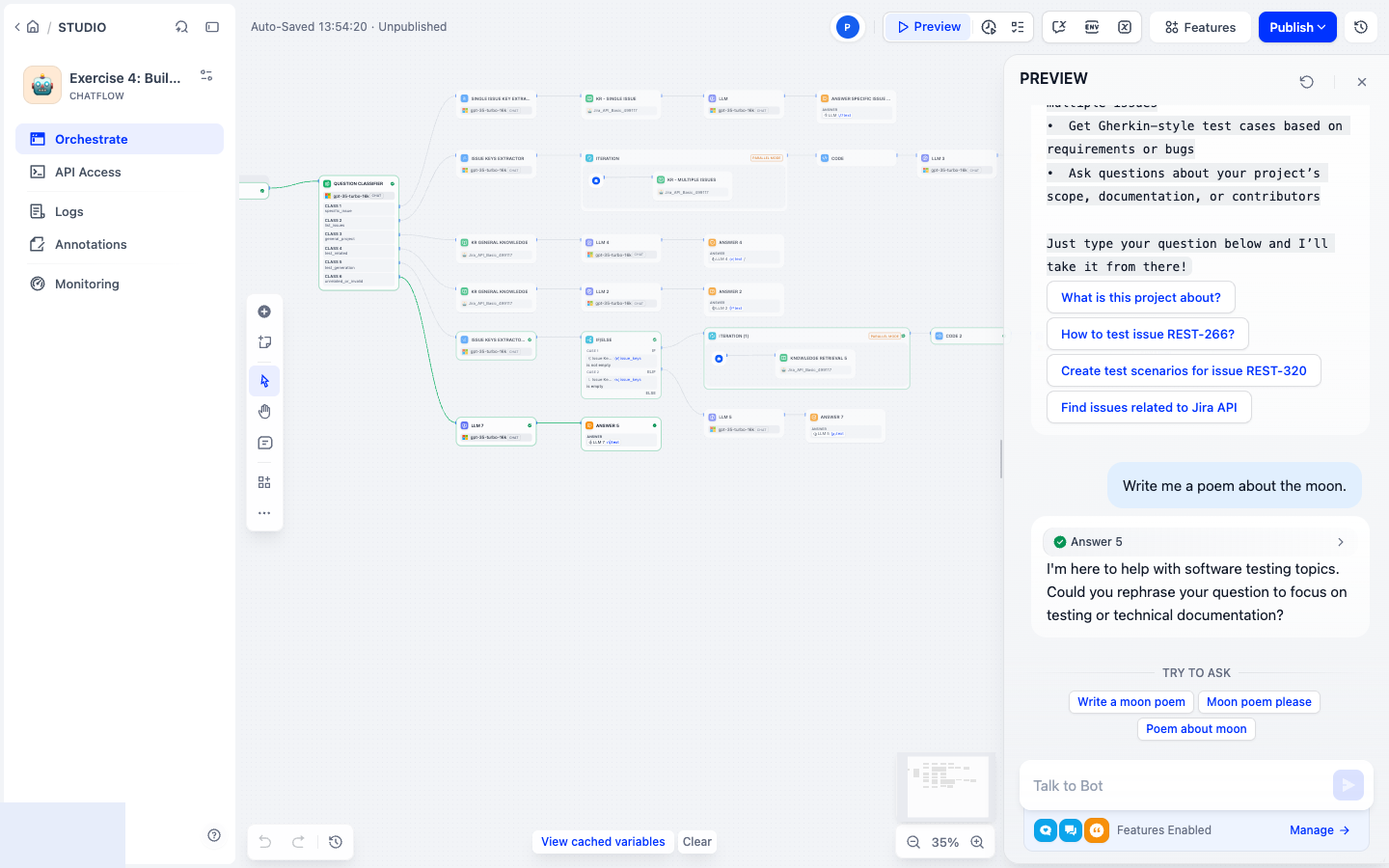

unrelated	Route to fallback LLM with polite redirect message

---

🔭 Modern Capabilities Evaluated new

Capability available after 1.9.1	Workshop decision	Why
Summary Index	Adopt in Exercise 2.1	Improves conceptual risk/test retrieval and can be measured against the same Jira benchmark
Knowledge tracing and app versions	Adopt in Exercise 3	Makes grounding diagnosable and accepted drafts recoverable
Iteration error strategy and batch status	Adopt here	Preserves successful issue results and reports partial or empty batches explicitly
Schedule/webhook triggers	Defer	Current ingestion is not idempotent and does not observe terminal indexing
Human Input	Defer	Read-only Q&A has no meaningful approval boundary; it would add queue and timeout complexity
Multimodal knowledge	Defer	The Jira fixture contains no answer-critical images
Agent application	Separate workshop	It changes the architecture and tool-execution threat model rather than improving this deterministic RAG goal

Newer is not automatically better. The core assistant remains a Chatflow because exact Jira filtering, measurable retrieval, citations, and predictable no-match behavior are the learning objective.

---

🗂️ Download: Preconfigured Bonus Chatflow changed

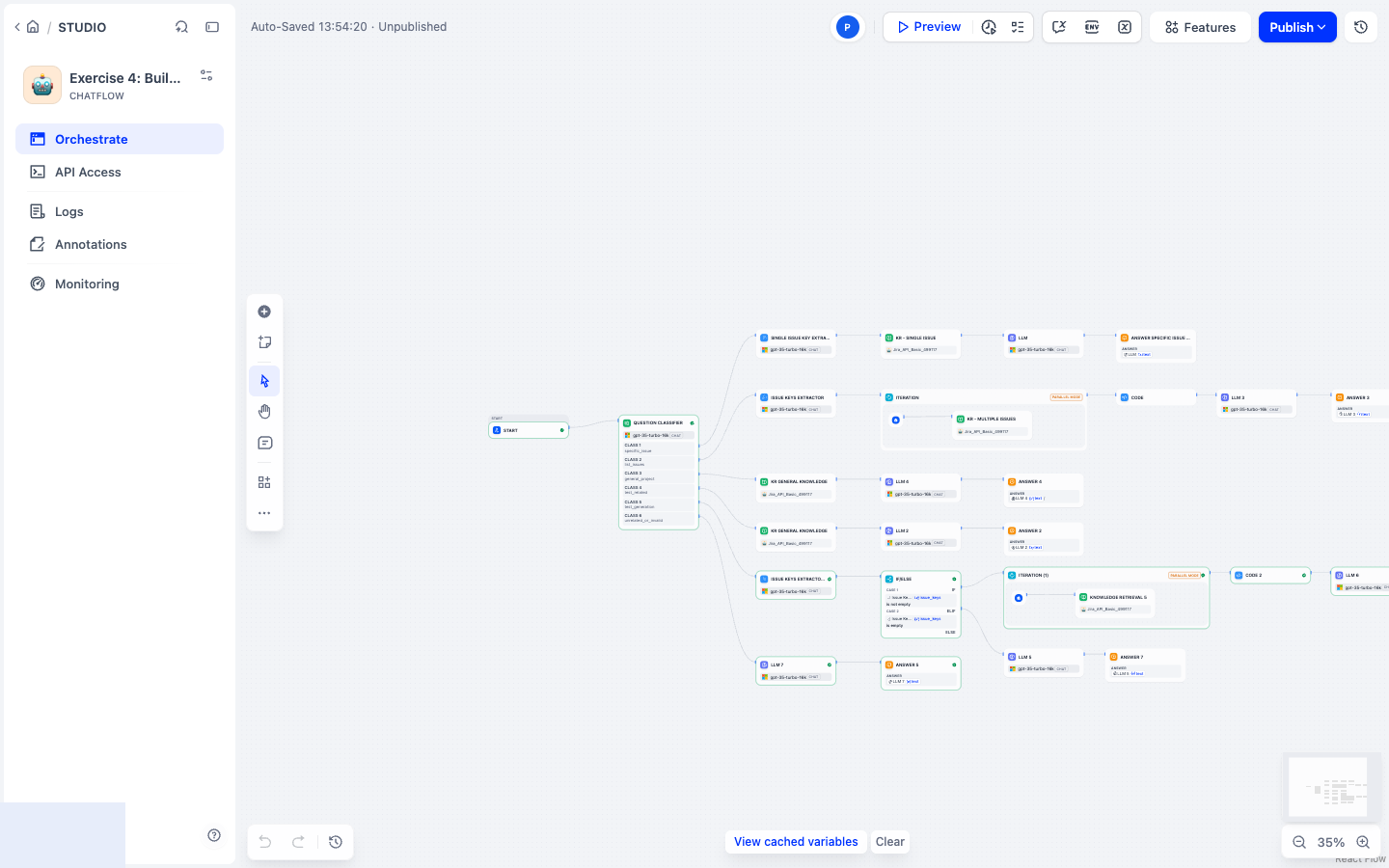

You can download a ready-made version of this bonus exercise, including a fully configured Dify chatflow with:

• Question classifier
• Iteration for multi-issue generation
• Metadata-based filters
• Specialized prompts per query type

⬇️ Download Exercise 4 Sample

💡 Import this YAML file into Dify and start tweaking!

Required after import: dataset IDs belong to the Dify workspace that exported the sample. Open KR - Single Issue, both KR General Knowledge nodes, KR - Multiple Issues, and Knowledge Retrieval 5; reselect your own Jira_API_Basic_* knowledge base in every node before running the flow. Confirm the manual issue_key filters remain attached to the exact-key retrieval nodes.

---

🌟 Wrap-up

If you've made it here, congratulations — you're ready to take Testus Patronus to the next level! Explore, experiment, and summon the full potential of AI-powered software testing.
